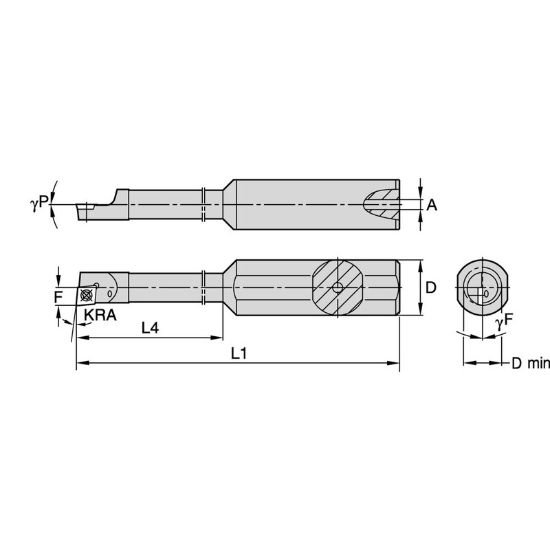

Picture of Widia/Kennametal CCBI1805008755L Carbide 80.0° Insert Boring Bar 0.500

Widia/Kennametal CCBI1805008755L Carbide 80.0° Insert Boring Bar 0.500

Part Number: WID2832247 ISO: CCBI1805008755L ANSI:CCBI1805008755L
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076141
Vendor: Sussex Tool and Supply
$501.92

Description

WIDIA 2832247 80.0 ° Boring Bar Dia0.5000 Positive Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style CD
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Positive
Hand Left Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Insert Size Ic 12
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Performance & Capacity
Min Bore 0.2080
Materials & Finish
Tool Material Carbide
