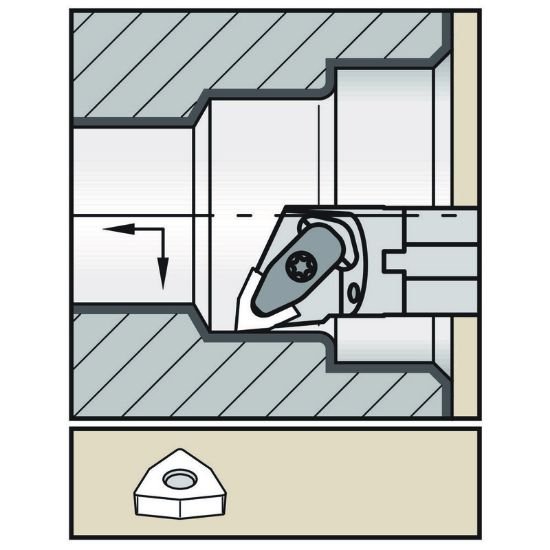

Picture of Widia/Kennametal A40TDWLNR08KC04 Trigon Insert Boring Bar 1.574

Widia/Kennametal A40TDWLNR08KC04 Trigon Insert Boring Bar 1.574

Part Number: WID5696283 ISO: A40TDWLNR08KC04 ANSI:A40TDWLNR08KC04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076390
Vendor: Sussex Tool and Supply
$361.43
WIDIA 5696283 Trigon Boring Bar Dia1.5748 Negative Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Steel
Machine Side Connection Type Boring Bar
Mach Side Connection Size 1.5748 40.00MM
Overall Length 11.8110 300.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style WN
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 12 "43"
Hand Right Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Min Bore 1.9690
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
