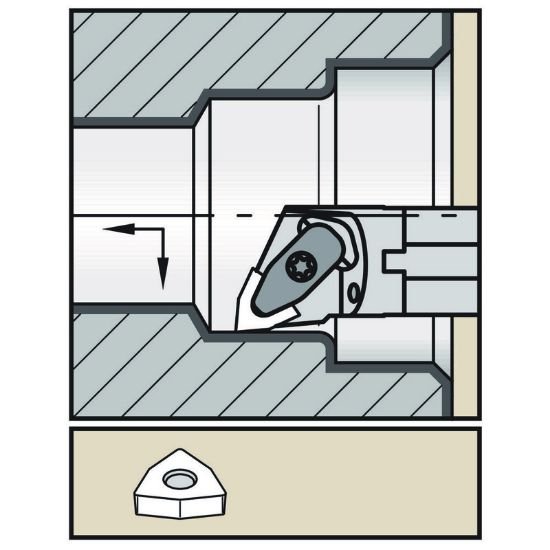

Picture of Widia/Kennametal A40TDWLNL08KC04 Trigon Insert Boring Bar 1.574

Widia/Kennametal A40TDWLNL08KC04 Trigon Insert Boring Bar 1.574

Part Number: WID5696284 ISO: A40TDWLNL08KC04 ANSI:A40TDWLNL08KC04
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076391
Vendor: Sussex Tool and Supply
$402.83

Description

WIDIA 5696284 Trigon Boring Bar Dia1.5748 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WN
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Left Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Dimensions & Sizing
Overall Length 11.8110 300.00MM
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 1
Insert Size Ic 12 "43"
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Performance & Capacity
Min Bore 1.9690
Materials & Finish
Tool Material Steel
