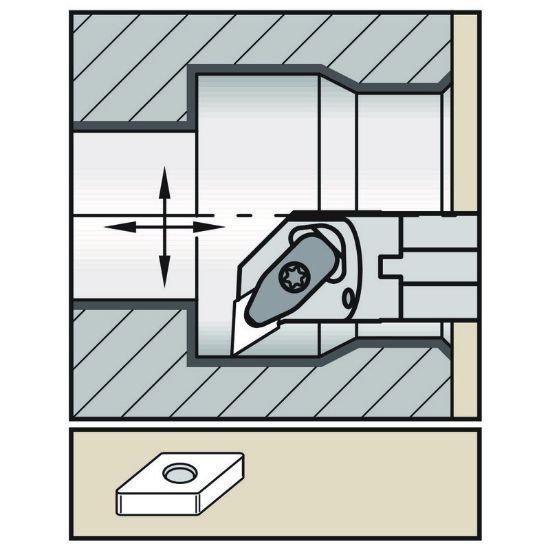

Picture of Widia/Kennametal A40TDDUNL15KC06 55.0° Insert Boring Bar 1.574

Widia/Kennametal A40TDDUNL15KC06 55.0° Insert Boring Bar 1.574

Part Number: WID5696216 ISO: A40TDDUNL15KC06 ANSI:A40TDDUNL15KC06
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076377
Vendor: Sussex Tool and Supply
$450.37

Description

WIDIA 5696216 55.0 ° Boring Bar Dia1.5748 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Left Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Dimensions & Sizing
Overall Length 11.8110 300.00MM
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 1
Insert Size Ic 15 "44"
Geometry & Angles
Lead Angle 93.5°
Lead Angle & Clearance Angle Combined 93.5° Lead Angle 30.0° Clearance Angle
Clearance Angle 30.0°
Performance & Capacity
Min Bore 1.9690
Materials & Finish
Tool Material Steel
