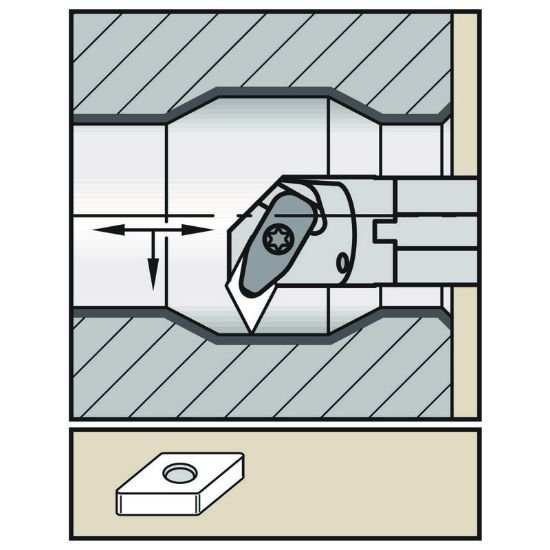

Picture of Widia/Kennametal A40TDDPNR15KC06 55.0° Insert Boring Bar 1.574

Widia/Kennametal A40TDDPNR15KC06 55.0° Insert Boring Bar 1.574

Part Number: WID5696082 ISO: A40TDDPNR15KC06 ANSI:A40TDDPNR15KC06
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076367
Vendor: Sussex Tool and Supply
$450.37

Description

WIDIA 5696082 55.0 ° Boring Bar Dia1.5748 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Right Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Dimensions & Sizing
Overall Length 11.8110 300.00MM
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 1
Insert Size Ic 15 "44"
Geometry & Angles
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 57.0° Clearance Angle
Clearance Angle 57.0°
Performance & Capacity
Min Bore 2.0470
Materials & Finish
Tool Material Steel
