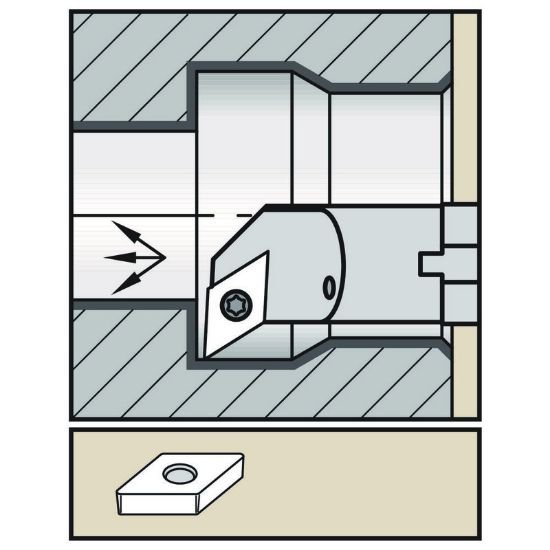

Picture of Widia/Kennametal A32TSDUCL15 55.0° Insert Boring Bar 1.259

Widia/Kennametal A32TSDUCL15 55.0° Insert Boring Bar 1.259

Part Number: WID3883289 ISO: A32TSDUCL15 ANSI:A32TSDUCL15
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076280
Vendor: Sussex Tool and Supply
$321.79

Description

WIDIA 3883289 55.0 ° Boring Bar Dia1.2598 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Left Hand
Inter/Extern Internal
Coolant Type 1/8-27 NPT
Dimensions & Sizing
Overall Length 11.8110 300.00MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 1
Insert Size Ic 15 "43"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 30.0° Clearance Angle
Clearance Angle 30.0°
Performance & Capacity
Min Bore 1.5750
Materials & Finish
Tool Material Steel
