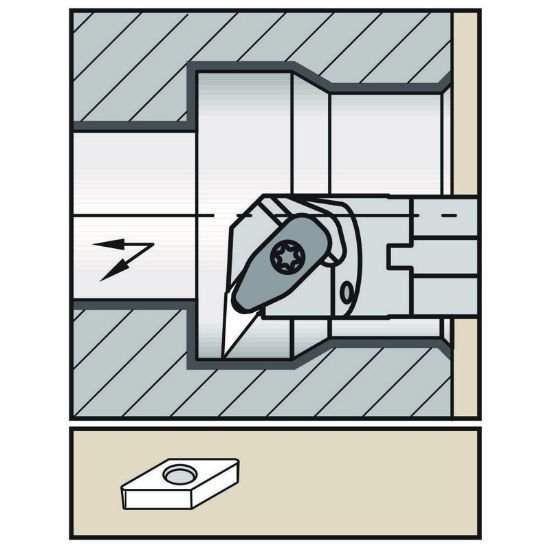

Picture of Widia/Kennametal A32SDVUNR16KC04 35.0° Insert Boring Bar 1.259

Widia/Kennametal A32SDVUNR16KC04 35.0° Insert Boring Bar 1.259

Part Number: WID5696263 ISO: A32SDVUNR16KC04 ANSI:A32SDVUNR16KC04
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076383
Vendor: Sussex Tool and Supply
$385.00

Description

WIDIA 5696263 35.0 ° Boring Bar Dia1.2598 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Negative
Hand Right Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Dimensions & Sizing
Overall Length 9.8425 250.00MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 1
Insert Size Ic 16 "33"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 50.0° Clearance Angle
Clearance Angle 50.0°
Performance & Capacity
Min Bore 1.5748
Materials & Finish
Tool Material Steel
