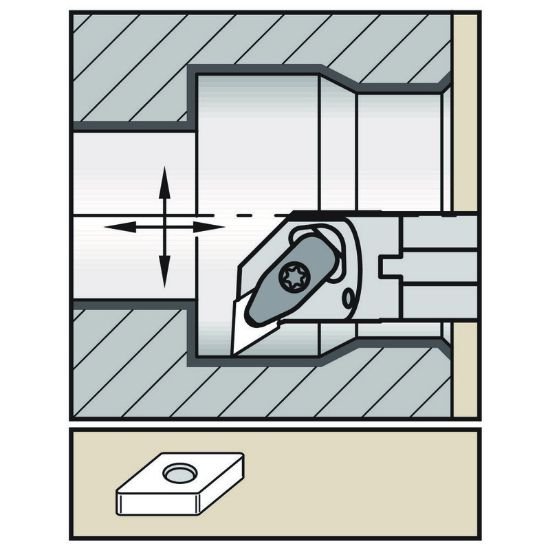

Picture of Widia/Kennametal A32SDDUNR15KC06 55.0° Insert Boring Bar 1.259

Widia/Kennametal A32SDDUNR15KC06 55.0° Insert Boring Bar 1.259

Part Number: WID5696213 ISO: A32SDDUNR15KC06 ANSI:A32SDDUNR15KC06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076374
Vendor: Sussex Tool and Supply
$356.78
WIDIA 5696213 55.0 ° Boring Bar Dia1.2598 Negative Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Steel
Machine Side Connection Type Boring Bar
Mach Side Connection Size 1.2598 32.00MM
Overall Length 9.8430 250.01MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Insert Size Ic 15 "44"
Hand Right Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Min Bore 1.5750
Lead Angle 93.5°
Lead Angle & Clearance Angle Combined 93.5° Lead Angle 30.0° Clearance Angle
Clearance Angle 30.0°
