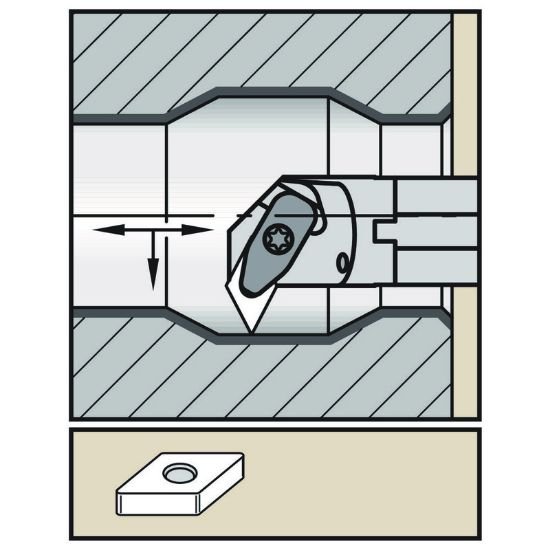

Picture of Widia/Kennametal A32SDDPNL15KC06 55.0° Insert Boring Bar 1.259

Widia/Kennametal A32SDDPNL15KC06 55.0° Insert Boring Bar 1.259

Part Number: WID5696081 ISO: A32SDDPNL15KC06 ANSI:A32SDDPNL15KC06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076366
Vendor: Sussex Tool and Supply
$356.78
WIDIA 5696081 55.0 ° Boring Bar Dia1.2598 Negative Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Steel
Machine Side Connection Type Boring Bar
Mach Side Connection Size 1.2598 32.00MM
Overall Length 9.8430 250.01MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Insert Size Ic 15 "44"
Hand Left Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Min Bore 1.7720
Lead Angle 62.5°
Lead Angle & Clearance Angle Combined 62.5° Lead Angle 57.0° Clearance Angle
Clearance Angle 57.0°
