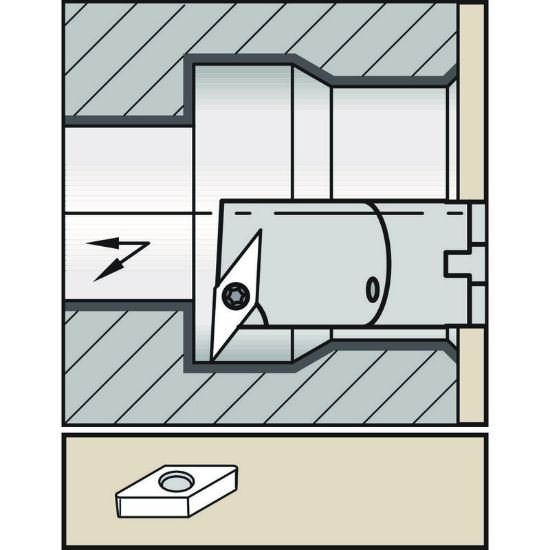

Picture of Widia/Kennametal A25TSVUBL16 35.0° Insert Boring Bar 0.984

Widia/Kennametal A25TSVUBL16 35.0° Insert Boring Bar 0.984

Part Number: WID3883439 ISO: A25TSVUBL16 ANSI:A25TSVUBL16
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076302
Vendor: Sussex Tool and Supply
$300.57

Description

WIDIA 3883439 35.0 ° Boring Bar Dia0.9843 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Hand Left Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Dimensions & Sizing
Overall Length 11.8110 300.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 1
Insert Size Ic 16 "33"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 50.0° Clearance Angle
Clearance Angle 50.0°
Performance & Capacity
Min Bore 1.2598
Materials & Finish
Tool Material Steel
