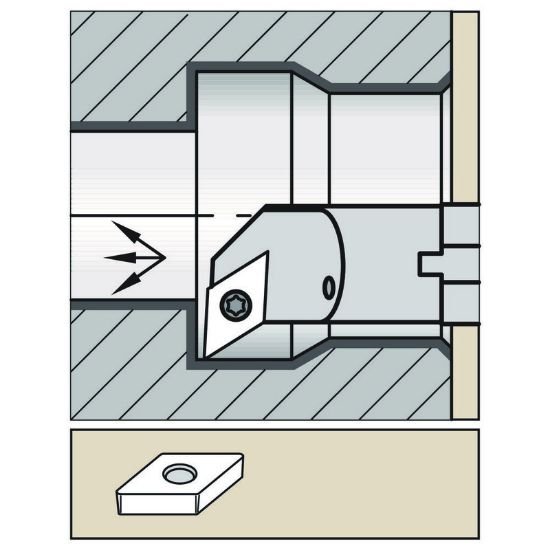

Picture of Widia/Kennametal A25TSDQCL11 55.0° Insert Boring Bar 0.984

Widia/Kennametal A25TSDQCL11 55.0° Insert Boring Bar 0.984

Part Number: WID3883473 ISO: A25TSDQCL11 ANSI:A25TSDQCL11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076323
Vendor: Sussex Tool and Supply
$285.65

Description

WIDIA 3883473 55.0 ° Boring Bar Dia0.9843 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Left Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Dimensions & Sizing
Overall Length 11.8110 300.00MM
Shank/Pilot Dia 0.9843 25.00MM
Flutes/Inserts 1
Insert Size Ic 11 "32"
Geometry & Angles
Lead Angle 107.5°
Lead Angle & Clearance Angle Combined 107.5° Lead Angle 15.5° Clearance Angle
Clearance Angle 15.5°
Performance & Capacity
Min Bore 1.2598
Materials & Finish
Tool Material Steel
