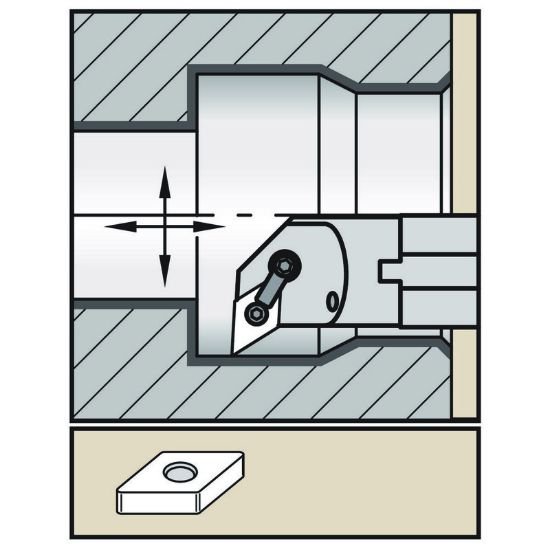

Picture of Widia/Kennametal A24UMDUNR4 55.0° Insert Boring Bar 1.500

Widia/Kennametal A24UMDUNR4 55.0° Insert Boring Bar 1.500

Part Number: WID2951412 ISO: A24UMDUNR4 ANSI:A24UMDUNR4
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076225
Vendor: Sussex Tool and Supply
$415.48

Description

WIDIA 2951412 55.0 ° Boring Bar Dia1.5000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DN
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Negative
Hand Right Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Dimensions & Sizing
Overall Length 14.0000 355.60MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 1
Insert Size Ic 12 "43"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 20.0° Clearance Angle
Clearance Angle 20.0°
Performance & Capacity
Min Bore 2.0000
Materials & Finish
Tool Material Steel
