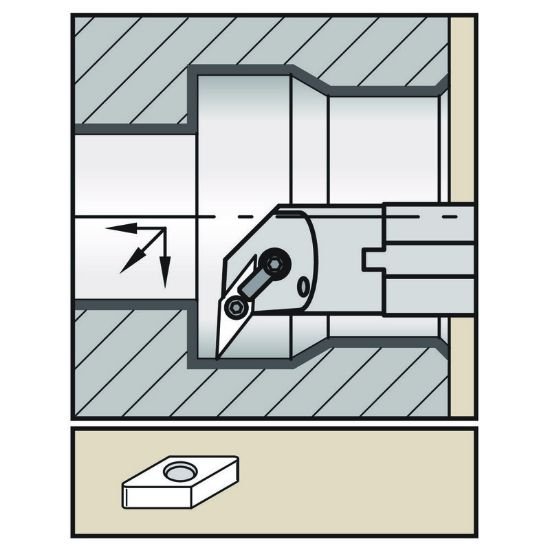

Picture of Widia/Kennametal A20UMVUNR3 35.0° Insert Boring Bar 1.250

Widia/Kennametal A20UMVUNR3 35.0° Insert Boring Bar 1.250

Part Number: WID3883412 ISO: A20UMVUNR3 ANSI:A20UMVUNR3
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076291
Vendor: Sussex Tool and Supply
$398.69

Description

WIDIA 3883412 35.0 ° Boring Bar Dia1.2500 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VN
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Negative
Hand Right Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Dimensions & Sizing
Overall Length 14.0000 355.60MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 1
Insert Size Ic 16 "33"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 50.0° Clearance Angle
Clearance Angle 50.0°
Performance & Capacity
Min Bore 1.7050
Materials & Finish
Tool Material Steel
