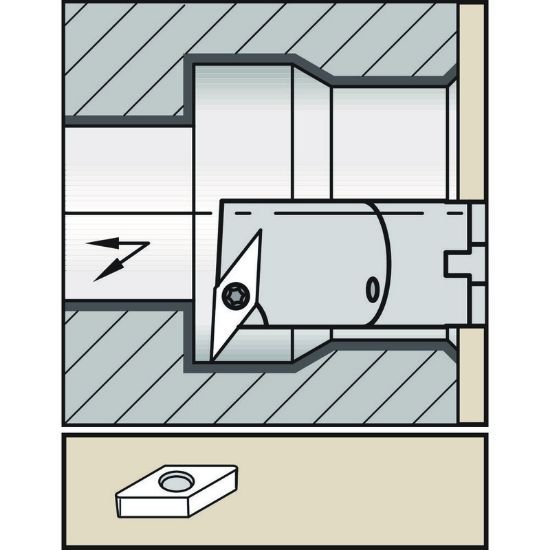

Picture of Widia/Kennametal A20SSVUBR11 35.0° Insert Boring Bar 0.787

Widia/Kennametal A20SSVUBR11 35.0° Insert Boring Bar 0.787

Part Number: WID3883440 ISO: A20SSVUBR11 ANSI:A20SSVUBR11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076303
Vendor: Sussex Tool and Supply
$242.72

Description

WIDIA 3883440 35.0 ° Boring Bar Dia0.7874 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Coolant Type 1/8-27 NPT
Dimensions & Sizing
Overall Length 9.8430 250.01MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 1
Insert Size Ic 11 "22"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 50.0° Clearance Angle
Clearance Angle 50.0°
Performance & Capacity
Min Bore 0.9840
Materials & Finish
Tool Material Steel
