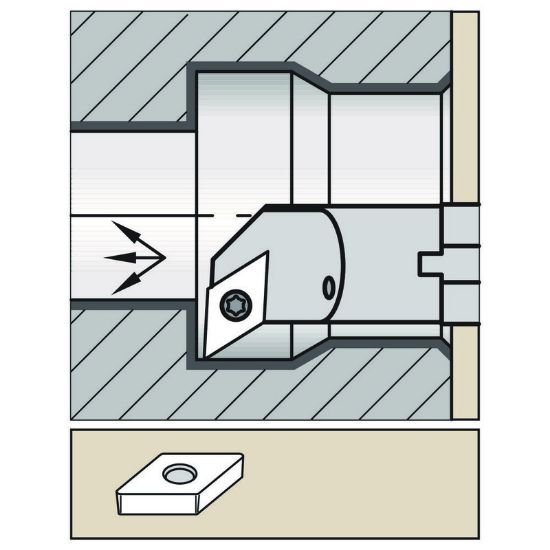

Picture of Widia/Kennametal A20SSDQCL11 55.0° Insert Boring Bar 0.787

Widia/Kennametal A20SSDQCL11 55.0° Insert Boring Bar 0.787

Part Number: WID3883475 ISO: A20SSDQCL11 ANSI:A20SSDQCL11
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076325
Vendor: Sussex Tool and Supply
$225.95

Description

WIDIA 3883475 55.0 ° Boring Bar Dia0.7874 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Left Hand
Inter/Extern Internal
Coolant Type 1/8-27 NPT
Dimensions & Sizing
Overall Length 9.8425 250.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 1
Insert Size Ic 11 "32"
Geometry & Angles
Lead Angle 107.5°
Lead Angle & Clearance Angle Combined 107.5° Lead Angle 15.5° Clearance Angle
Clearance Angle 15.5°
Performance & Capacity
Min Bore 0.9843
Materials & Finish
Tool Material Steel
