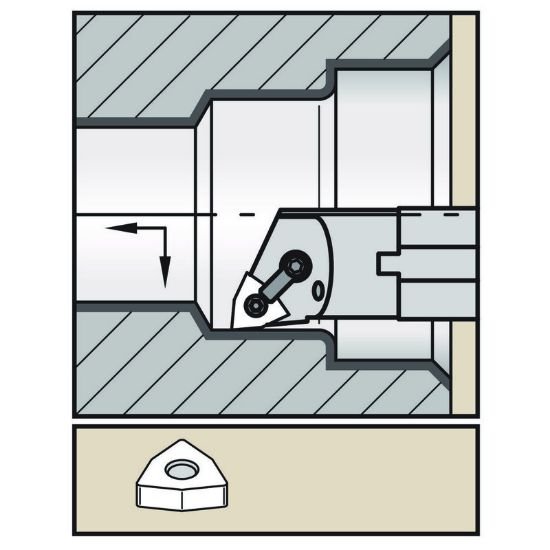

Picture of Widia/Kennametal A16TMWLNR4 Trigon Insert Boring Bar 1.000

Widia/Kennametal A16TMWLNR4 Trigon Insert Boring Bar 1.000

Part Number: WID2951398 ISO: A16TMWLNR4 ANSI:A16TMWLNR4
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076220
Vendor: Sussex Tool and Supply
$314.87

Description

WIDIA 2951398 Trigon Boring Bar Dia1.0000 Negative Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WN
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Hand Right Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Dimensions & Sizing
Overall Length 12.0000 304.80MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 1
Insert Size Ic 12 "43"
Geometry & Angles
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
Performance & Capacity
Min Bore 1.2200
Materials & Finish
Tool Material Steel
