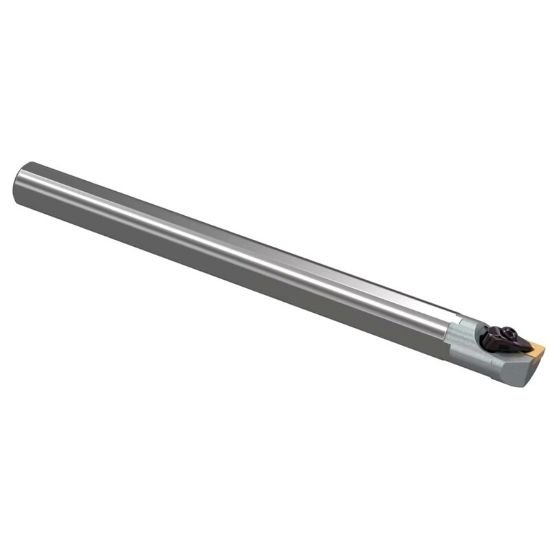

Picture of Widia/Kennametal A16TDCLNL4KC3 80.0° Insert Boring Bar 1.000

Widia/Kennametal A16TDCLNL4KC3 80.0° Insert Boring Bar 1.000

Part Number: WID5696286 ISO: A16TDCLNL4KC3 ANSI:A16TDCLNL4KC3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1076392
Vendor: Sussex Tool and Supply
$384.90
WIDIA 5696286 80.0 ° Boring Bar Dia1.0000 Negative Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Tool Material Steel
Machine Side Connection Type Boring Bar
Mach Side Connection Size 1.0000 25.40MM
Overall Length 12.0000 304.80MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 1
Type Of Tool Boring Bar
Insert/Tool TOOL
Insert Application General Purpose
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Insert Size Ic 12 "43"
Hand Left Hand
Inter/Extern Internal
Coolant Type 1/4-18 NPT
Min Bore 1.2000
Lead Angle 95°
Lead Angle & Clearance Angle Combined 95° Lead Angle
