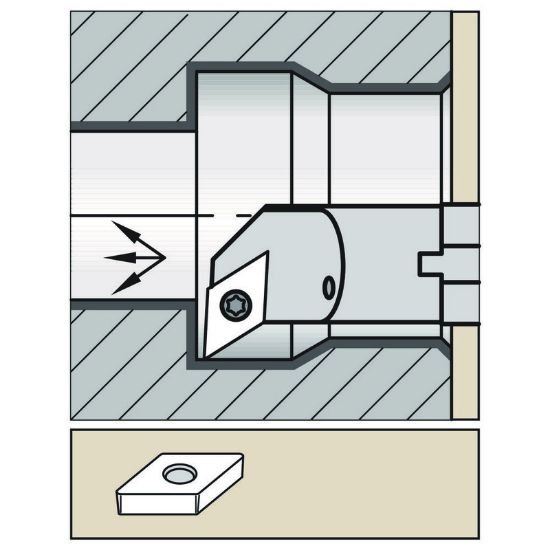

Picture of Widia/Kennametal A16RSDQCR07 55.0° Insert Boring Bar 0.629

Widia/Kennametal A16RSDQCR07 55.0° Insert Boring Bar 0.629

Part Number: WID3883476 ISO: A16RSDQCR07 ANSI:A16RSDQCR07
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076326
Vendor: Sussex Tool and Supply
$184.11

Description

WIDIA 3883476 55.0 ° Boring Bar Dia0.6299 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Coolant Type 1/8-27 NPT
Dimensions & Sizing
Overall Length 7.8740 200.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 1
Insert Size Ic 07 "21"
Geometry & Angles
Lead Angle 107.5°
Lead Angle & Clearance Angle Combined 107.5° Lead Angle 15.5° Clearance Angle
Clearance Angle 15.5°
Performance & Capacity
Min Bore 0.7874
Materials & Finish
Tool Material Steel
