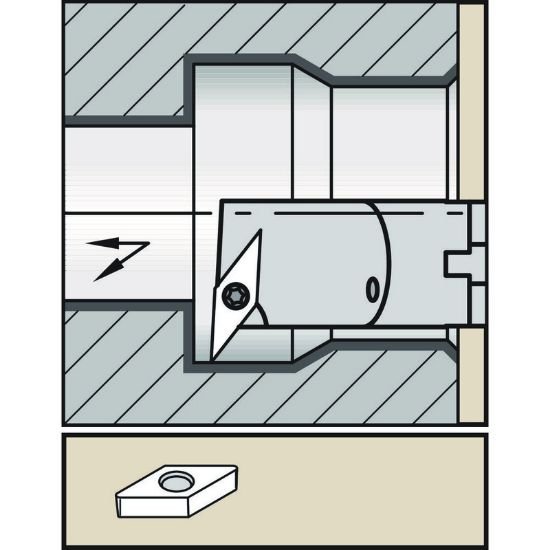

Picture of Widia/Kennametal A12SSVUBR2 35.0° Insert Boring Bar 0.750

Widia/Kennametal A12SSVUBR2 35.0° Insert Boring Bar 0.750

Part Number: WID3883423 ISO: A12SSVUBR2 ANSI:A12SSVUBR2
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076295
Vendor: Sussex Tool and Supply
$221.79

Description

WIDIA 3883423 35.0 ° Boring Bar Dia0.7500 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Coolant Type 1/8-27 NPT
Dimensions & Sizing
Overall Length 10.0000 254.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Insert Size Ic 11 "22"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 50.0° Clearance Angle
Clearance Angle 50.0°
Performance & Capacity
Min Bore 0.9800
Materials & Finish
Tool Material Steel
