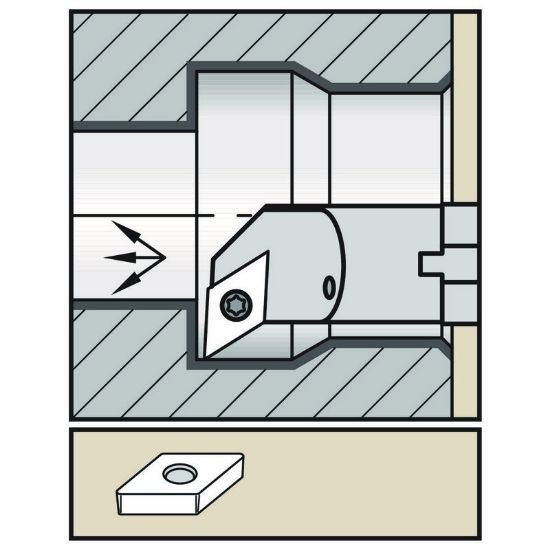

Picture of Widia/Kennametal A12SSDUCL3 55.0° Insert Boring Bar 0.750

Widia/Kennametal A12SSDUCL3 55.0° Insert Boring Bar 0.750

Part Number: WID2951393 ISO: A12SSDUCL3 ANSI:A12SSDUCL3
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076217
Vendor: Sussex Tool and Supply
$222.67

Description

WIDIA 2951393 55.0 ° Boring Bar Dia0.7500 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Left Hand
Inter/Extern Internal
Coolant Type 1/8-27 NPT
Dimensions & Sizing
Overall Length 10.0000 254.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 1
Insert Size Ic 11 "32"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 30.0° Clearance Angle
Clearance Angle 30.0°
Performance & Capacity
Min Bore 0.9800
Materials & Finish
Tool Material Steel
