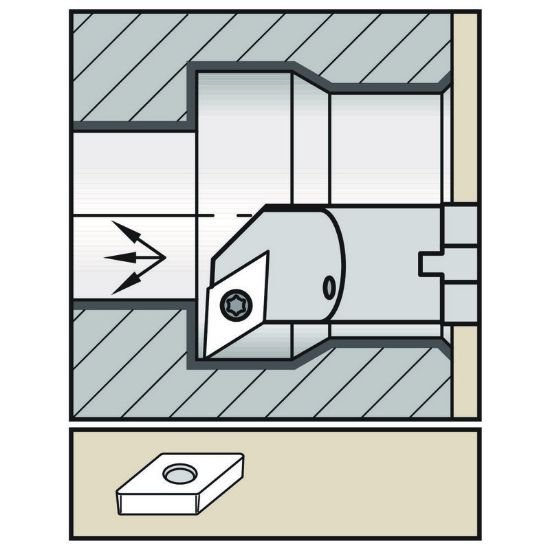

Picture of Widia/Kennametal A10KSDUCR07 55.0° Insert Boring Bar 0.393

Widia/Kennametal A10KSDUCR07 55.0° Insert Boring Bar 0.393

Part Number: WID3883297 ISO: A10KSDUCR07 ANSI:A10KSDUCR07
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1076288
Vendor: Sussex Tool and Supply
$132.65

Description

WIDIA 3883297 55.0 ° Boring Bar Dia0.3937 Positive Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Cutter Type Boring Bar
Coolant Thru Thru Coolant
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
Insert Type Positive
Hand Right Hand
Inter/Extern Internal
Dimensions & Sizing
Overall Length 4.9213 125.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 1
Insert Size Ic 07 "21"
Geometry & Angles
Lead Angle 93°
Lead Angle & Clearance Angle Combined 93° Lead Angle 30.0° Clearance Angle
Clearance Angle 30.0°
Performance & Capacity
Min Bore 0.5118
Materials & Finish
Tool Material Steel
