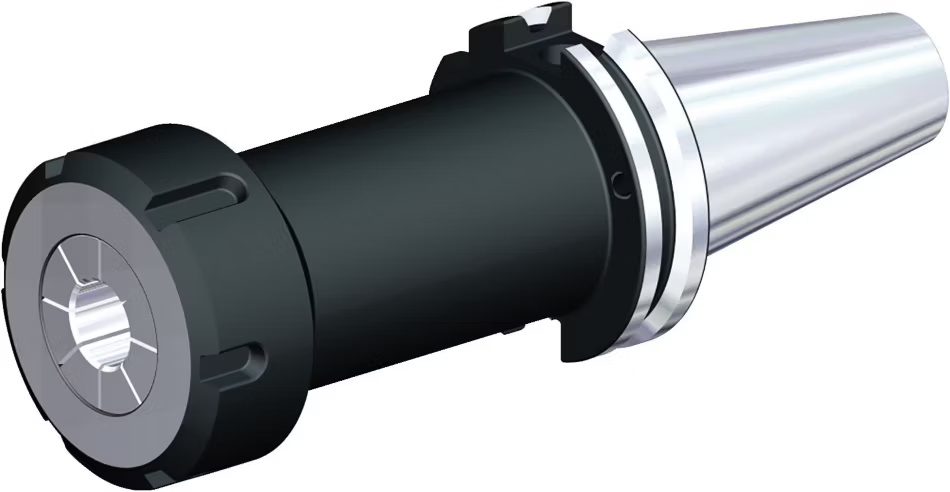

Picture of Widia/Kennametal 6694912 SK50 Collet Chuck ER25 3.9370 Gauge Length

Widia/Kennametal 6694912 SK50 Collet Chuck ER25 3.9370 Gauge Length

Part Number: WID6694912 ISO: DV50BER25100M ANSI:DV50BER25100M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1438876
Vendor: Sussex Tool and Supply
$577.01
Widia/Kennametal Dv50B ER25 Collet Chuck L1=100 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type SK
Mach Side Connection Size 50
Overall Length 7.9370 201.60MM
Coolant Thru Thru Coolant
Tool Dia 1.3970 35.48MM
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER25
Output Type ER
Output 25
CNC Type Tool Collet Chuck
CNC Conection SK50
CNC Out Put ER25
Gauge Length 3.9370
Max RPM 20000
Tool Over Hang 3.1870
Nose Dia/Nut Dia 1.6535
Balanced To 20, 000 RPM at G6.3
