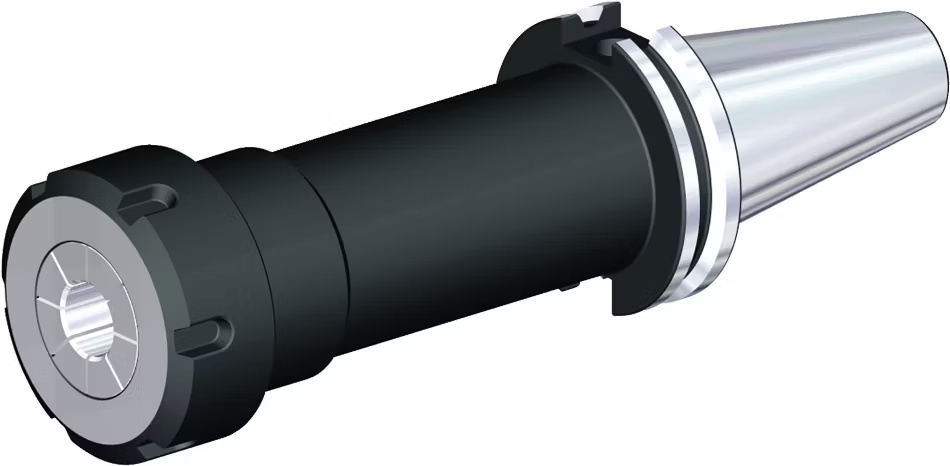

Picture of Widia/Kennametal 6693876 CAT40 Collet Chuck ER20 4.0000 Gauge Length Dual Contact

Widia/Kennametal 6693876 CAT40 Collet Chuck ER20 4.0000 Gauge Length Dual Contact

Part Number: WID6693876 ISO: CV40ER20400 ANSI:CV40ER20400
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1438813
Vendor: Sussex Tool and Supply
$176.40

Description

Widia/Kennametal Cv40 ER20 Collet Chuck L1=4.00 Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Dual Contact Big+ Dual Contact
Dimensions & Sizing
Overall Length 6.6870 169.85MM
Tool Dia 1.3900 35.30MM
Gauge Length 4.0000
Tool Over Hang 2.5900
Nose Dia/Nut Dia 1.3780
Performance & Capacity
Output 20
Max RPM 20000
Balanced To 20, 000 RPM at G6.3
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection CAT40
