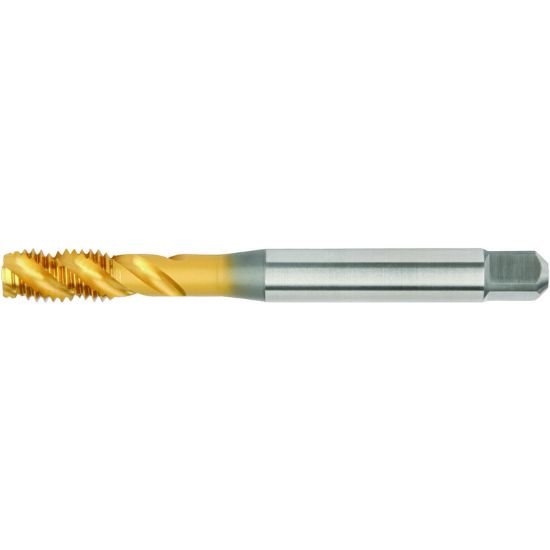

Picture of Widia/Kennametal 6172722 M27-1.50mm Cut Spiral Flute Bottoming 1.0P-2.0P HSSE TiN

Widia/Kennametal 6172722 M27-1.50mm Cut Spiral Flute Bottoming 1.0P-2.0P HSSE TiN

Part Number: WID6172722

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1172290
Vendor: Sussex Tool and Supply
$287.46
WIDIA 6172722 M27x1.50MM Cut Spiral Flute Bottoming 1.0P-2.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating TIN
Overall Length 5.5120 140.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M27
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 1.0016 25.44MM - 1.0169 25.83MM
Tap Square 0.6300
Tap Chamfer 1.0P-2.0P
