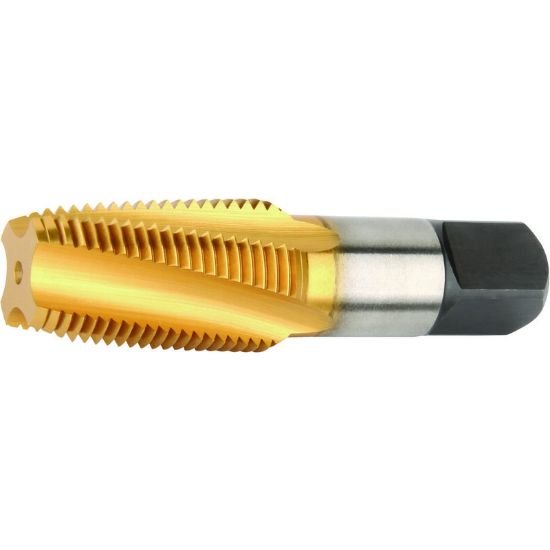

Picture of Widia/Kennametal 5629627 1/4-18.00TPI Pipe Spiral Flute Pipe HSSE TiN

Widia/Kennametal 5629627 1/4-18.00TPI Pipe Spiral Flute Pipe HSSE TiN

Part Number: WID5629627
Looking for alternatives…
Find a drill for this tap 1/4" × 18.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1171350
Vendor: Sussex Tool and Supply
$54.36

Description

WIDIA 5629627 1/4"x18.00TPI Pipe Spiral Flute Pipe HSSE TiN PIPE NPT/NPTF/ANPT Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimensions & Sizing
Overall Length 2.4370 61.90MM
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 4
Thread Pitch 18.00TPI
Thread Size 1/4"
Tap Drill Range 0.4378 11.12MM
Tap Square 0.4180
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
