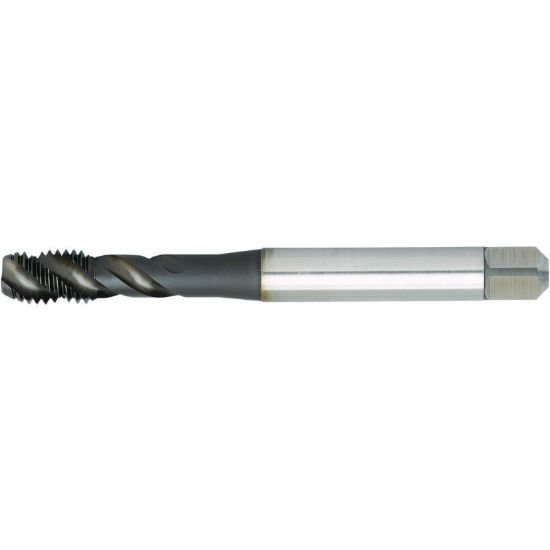

Picture of Widia/Kennametal 5436678 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Widia/Kennametal 5436678 No.10-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC

Part Number: WID5436678

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1171050
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5436678 No.10x24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE DLC 2B NC/UNC Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating DLC
Overall Length 2.7600 70.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 24.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.10
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1500
Tap Chamfer 2.5P-3.0P
