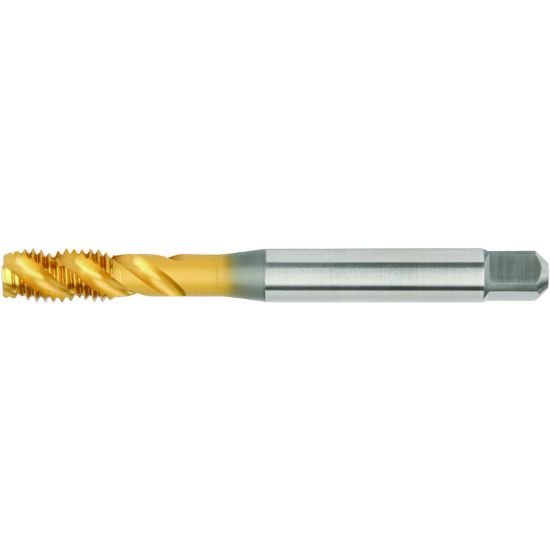

Picture of Widia/Kennametal 5402196 M10-1.25mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Widia/Kennametal 5402196 M10-1.25mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Part Number: WID5402196
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1170936

Description

WIDIA 5402196 M10x1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 3.9450 100.20MM
Shank/Pilot Dia 0.2756 7.00MM
Flutes/Inserts 3
Thread Pitch 1.25MM
Thread Size M10
Tap Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Tap Square 0.2170
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
