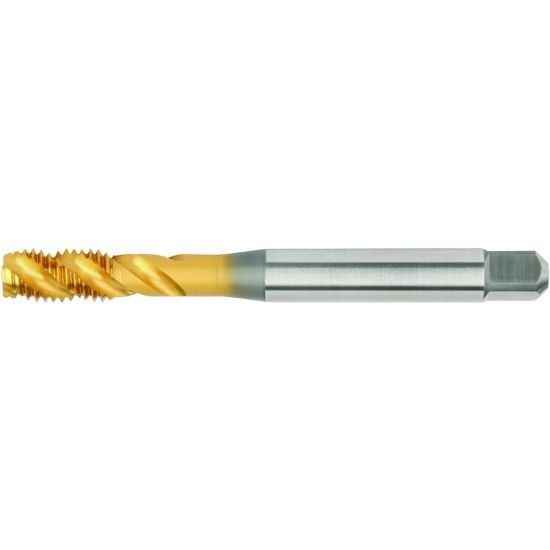

Picture of Widia/Kennametal 5387702 1-12.00TPI Cut Spiral Flute Mod Bottom 1.5P-2.5P HSSE DLC

Widia/Kennametal 5387702 1-12.00TPI Cut Spiral Flute Mod Bottom 1.5P-2.5P HSSE DLC

Part Number: WID5387702
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$295.07
SKU: 1170797

Description

WIDIA 5387702 1"x12.00TPI Cut Spiral Flute Mod Bottom 1.5P-2.5P HSSE DLC 2B NF/UNF/UNEF Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 1.5P-2.5P
Dimensions & Sizing
Overall Length 6.2990 159.99MM
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 4
Thread Pitch 12.00TPI
Thread Size 1"
Tap Drill Range 0.9134 23.20MM - 0.9350 23.75MM
Tap Square 0.5710
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating DLC
Standards & Identification
Dimension Standard DIN/DIN
