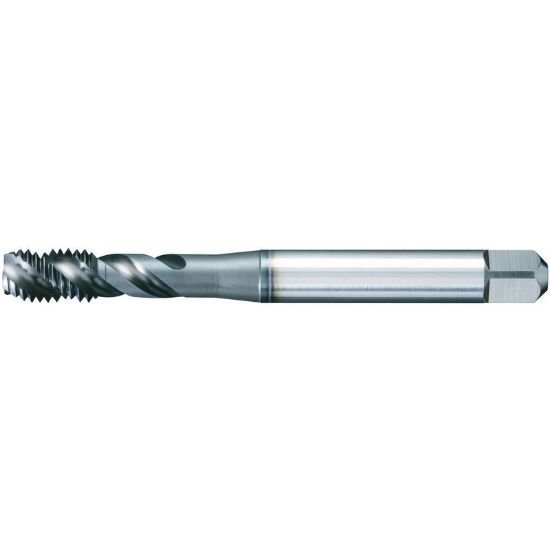

Picture of Widia/Kennametal 5387474 M20-2.50mm Cut Spiral Flute Mod Bottom 1.5P-2.5P HSSE DLC

Widia/Kennametal 5387474 M20-2.50mm Cut Spiral Flute Mod Bottom 1.5P-2.5P HSSE DLC

Part Number: WID5387474

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1170761
Vendor: Sussex Tool and Supply
$236.45
WIDIA 5387474 M20x2.50MM Cut Spiral Flute Mod Bottom 1.5P-2.5P HSSE DLC 6H Metric Steel DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Coating DLC
Overall Length 5.5120 140.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 2.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M20
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.6850 17.40MM - 0.7106 18.05MM
Tap Square 0.4720
Tap Chamfer 1.5P-2.5P
