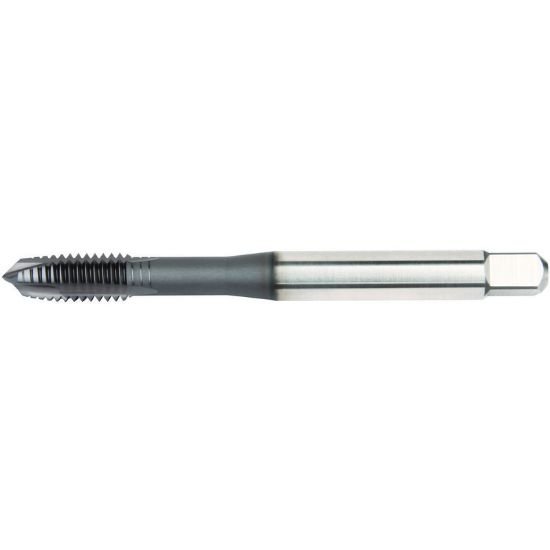

Picture of Widia/Kennametal 5368605 M4-0.50mm Cut Spiral Point Plug 3.0P-5.5P HSSE Uncoated

Widia/Kennametal 5368605 M4-0.50mm Cut Spiral Point Plug 3.0P-5.5P HSSE Uncoated

Part Number: WID5368605

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1170663
Vendor: Sussex Tool and Supply
$19.33
WIDIA 5368605 M4x0.50MM Cut Spiral Point Plug 3.0P-5.5P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Overall Length 2.4850 63.12MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1102 2.80MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M4
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.1370 3.48MM - 0.1421 3.61MM
Tap Square 0.0830
Tap Chamfer 3.0P-5.5P
