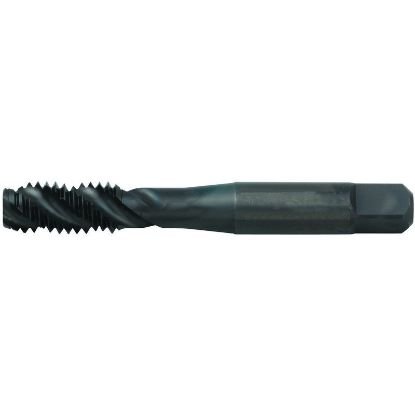

Picture of Widia/Kennametal 5365647 M18-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiCN

Widia/Kennametal 5365647 M18-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE TiCN

Part Number: WID5365647

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1170234
Vendor: Sussex Tool and Supply
$0.00
High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Products specifications
Attribute name Attribute value
Tap Drill Range 0.6472 16.44MM - 0.6626 16.83MM
Dimension Standard ANSI/ANSI
Shank Or Pilot Diameter 0.5420 13.77MM
Thread Limit D7
Cutter Type Taping
Tap Square 0.4030
Length Type STANDARD
Performance Rating High Performance
Tap Style Cut Spiral Flute
Overall Length 4.0310 102.39MM
Machine Side (Toolpost) TAP0.406x0.542
Cutting Edge Definition since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, V, the X component is present in excess of 7%, W or Mo, along with more than 0.60% carbon., and Co. These steels are mainly used for cutting tools
Type of Tool Tap
Machine Side (Toolpost) Connection Type Tap Collet
Flutes Or Inserts 4
Shipping State OHIO
Cutting Edge Material HSSE
Tool Material Steel
Coating TICN
Coolant Thru Non Coolant
Tap Type Mod Bottom
Flute Direction Right
Thread Type Metric
Made In USA No
Thread Size M18
Thread Pitch 1.50MM
Tap Chamfer 2.0P-3.0P
