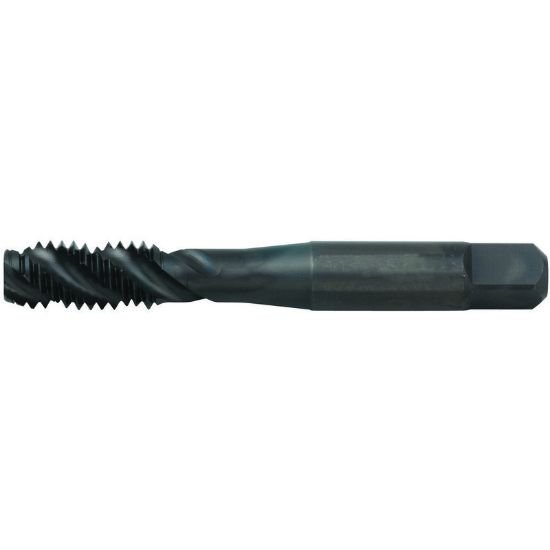

Picture of Widia/Kennametal 5365622 M12-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated

Widia/Kennametal 5365622 M12-1.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated

Part Number: WID5365622

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1170218
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5365622 M12x1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated D6 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Overall Length 3.3800 85.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit D6
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Tap Square 0.2720
Tap Chamfer 2.0P-3.0P
