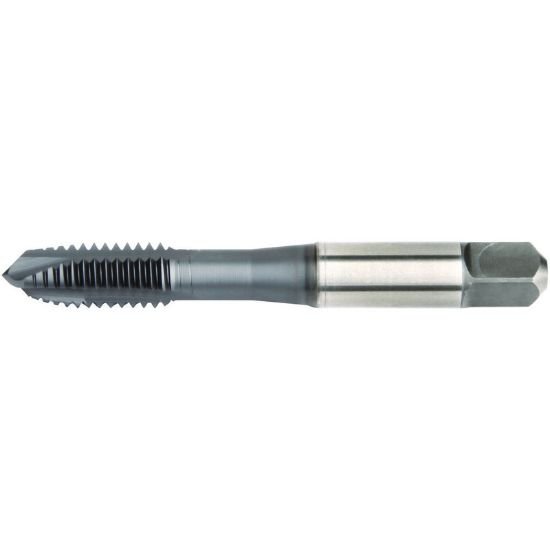

Picture of Widia/Kennametal 5362724 M8-1.25mm Cut Spiral Point Plug 3.0P-5.5P HSSE Uncoated

Widia/Kennametal 5362724 M8-1.25mm Cut Spiral Point Plug 3.0P-5.5P HSSE Uncoated

Part Number: WID5362724

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1170069
Vendor: Sussex Tool and Supply
$29.07
WIDIA 5362724 M8x1.25MM Cut Spiral Point Plug 3.0P-5.5P HSSE Uncoated D5 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M8
Thread Limit D5
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2360
Tap Chamfer 3.0P-5.5P
