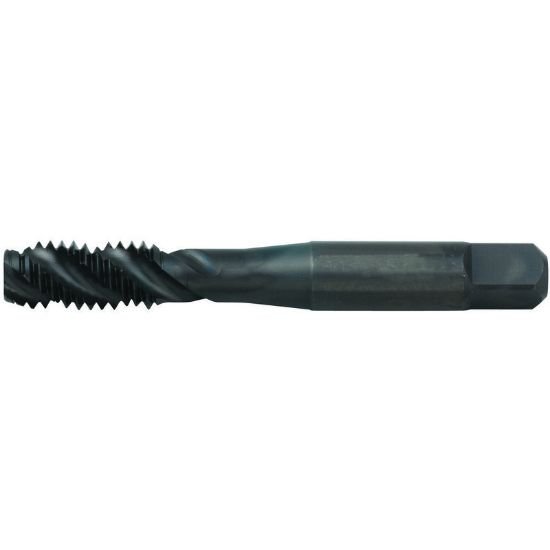

Picture of Widia/Kennametal 5357035 M3-0.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated

Widia/Kennametal 5357035 M3-0.50mm Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated

Part Number: WID5357035

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1169942
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
WIDIA 5357035 M3x0.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated D3 Metric Steel
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Overall Length 1.9370 49.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.50MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M3
Thread Limit D3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1083 2.75MM - 0.1106 2.81MM
Tap Square 0.1080
Tap Chamfer 2.0P-3.0P
