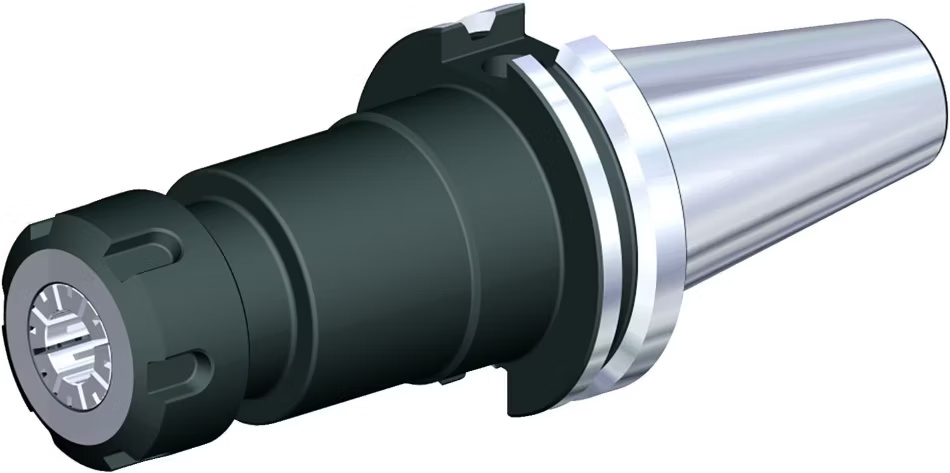

Picture of Widia/Kennametal 3860231 CAT50 Collet Chuck ER20 2.5000 Gauge Length Dual Contact

Widia/Kennametal 3860231 CAT50 Collet Chuck ER20 2.5000 Gauge Length Dual Contact

Part Number: WID3860231 ISO: CVKV50ER20250 ANSI:CVKV50ER20250
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1439363
Vendor: Sussex Tool and Supply
$393.43

Description

Widia/Kennametal Er 20 Collet Chuck - Cvkv 50 Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Dual Contact Big+ Dual Contact
Dimensions & Sizing
Overall Length 6.5000 165.10MM
Tool Dia 1.4450 36.70MM
Gauge Length 2.5000
Tool Over Hang 1.1250
Nose Dia/Nut Dia 1.3780
Performance & Capacity
Output 20
Max RPM 20000
Balanced To 20, 000 RPM at G6.3
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection CAT50
