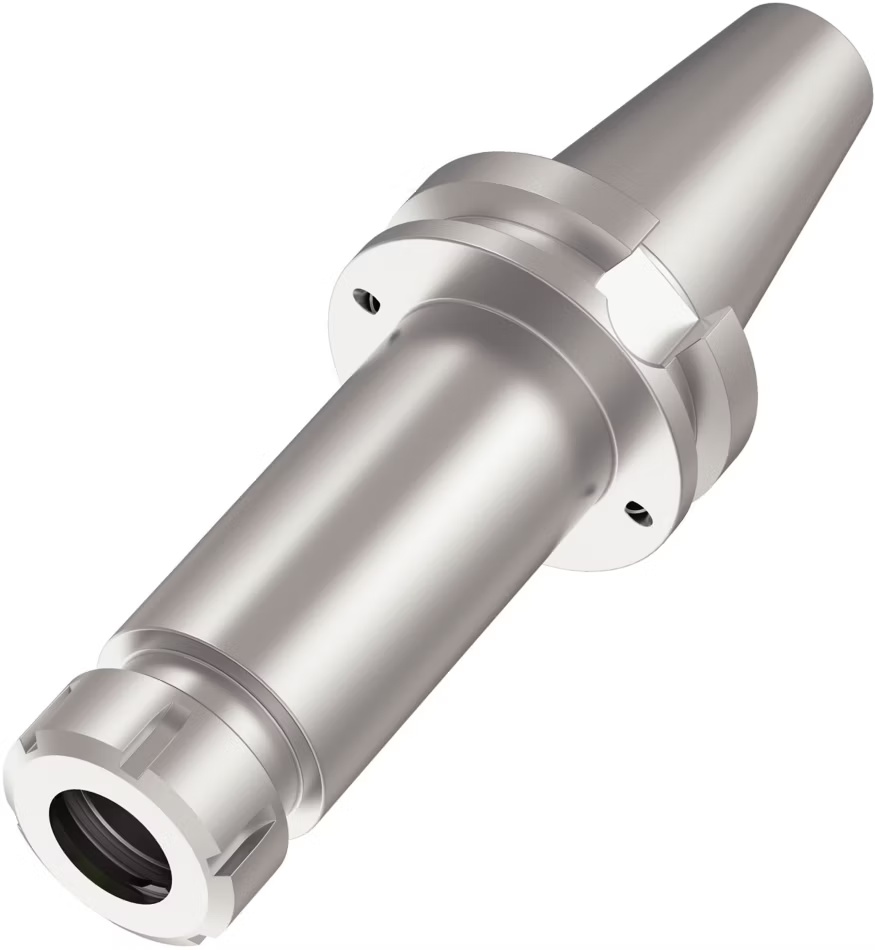

Picture of Widia/Kennametal 3847516 BT50 Collet Chuck ER20 5.9055 Gauge Length

Widia/Kennametal 3847516 BT50 Collet Chuck ER20 5.9055 Gauge Length

Part Number: WID3847516 ISO: BT50BER20150M ANSI:BT50BER20150M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1438314
Vendor: Sussex Tool and Supply
$220.95

Description

Widia/Kennametal BT50 Formb - ER20 Collet Chuck Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Flange Coolant DIN A/B
Dimensions & Sizing
Overall Length 9.9100 251.71MM
Tool Dia 1.3400 34.03MM
Gauge Length 5.9055
Tool Over Hang 5.1555
Nose Dia/Nut Dia 1.3780
Performance & Capacity
Output 20
Max RPM 20000
Balanced To 20, 000 RPM at G6.3
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection BT50
