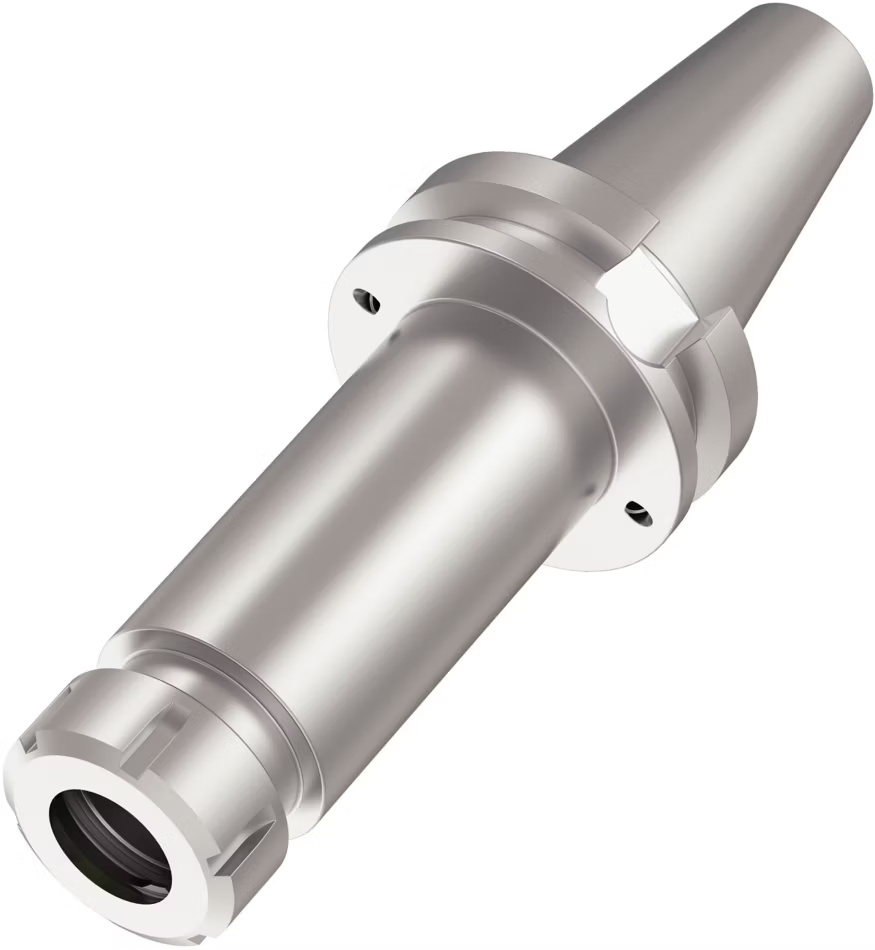

Picture of Widia/Kennametal 3847514 BT40 Collet Chuck ER20 5.9055 Gauge Length

Widia/Kennametal 3847514 BT40 Collet Chuck ER20 5.9055 Gauge Length

Part Number: WID3847514 ISO: BT40BER20150M ANSI:BT40BER20150M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1438312
Vendor: Sussex Tool and Supply
$186.83

Description

Widia/Kennametal BT40 Formb - ER20 Collet Chuck Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Flange Coolant DIN A/B
Dimensions & Sizing
Overall Length 8.4800 215.39MM
Tool Dia 1.3400 34.03MM
Gauge Length 5.9055
Tool Over Hang 4.8425
Nose Dia/Nut Dia 1.3800
Performance & Capacity
Output 20
Max RPM 20000
Balanced To 20, 000 RPM at G6.3
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection BT40
