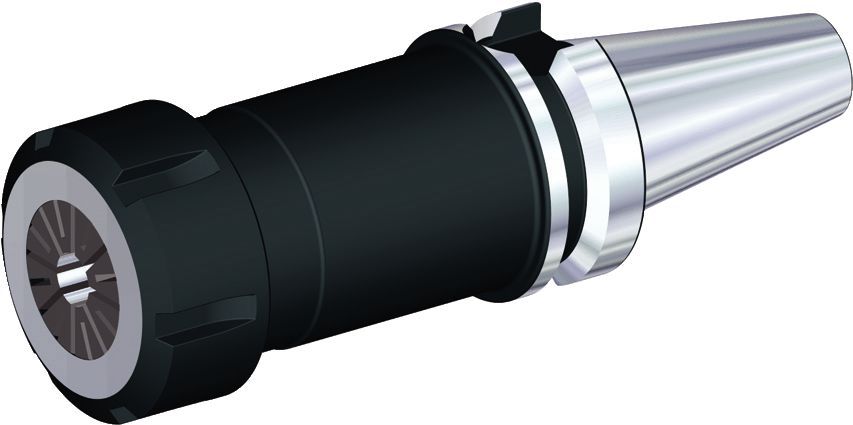

Picture of Widia/Kennametal 3847460 BT30 Collet Chuck ER40 3.9370 Gauge Length

Widia/Kennametal 3847460 BT30 Collet Chuck ER40 3.9370 Gauge Length

Part Number: WID3847460 ISO: BT30ER40100M ANSI:BT30ER40100M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1438308
Vendor: Sussex Tool and Supply
$215.05
Widia/Kennametal BT30 - ER40 Collet Chuck X 100 Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 30
Overall Length 5.8425 148.40MM
Coolant Thru Thru Coolant
Tool Dia 1.3400 34.03MM
Type Of Tool Collet Chuck
Insert/Tool TOOL
Part Side ER40
Output Type ER
Output 40
CNC Type Tool Collet Chuck
CNC Conection BT30
CNC Out Put ER40
Gauge Length 3.9370
Max RPM 20000
Tool Over Hang 3.0669
Nose Dia/Nut Dia 2.4803
Balanced To 20, 000 RPM at G6.3
