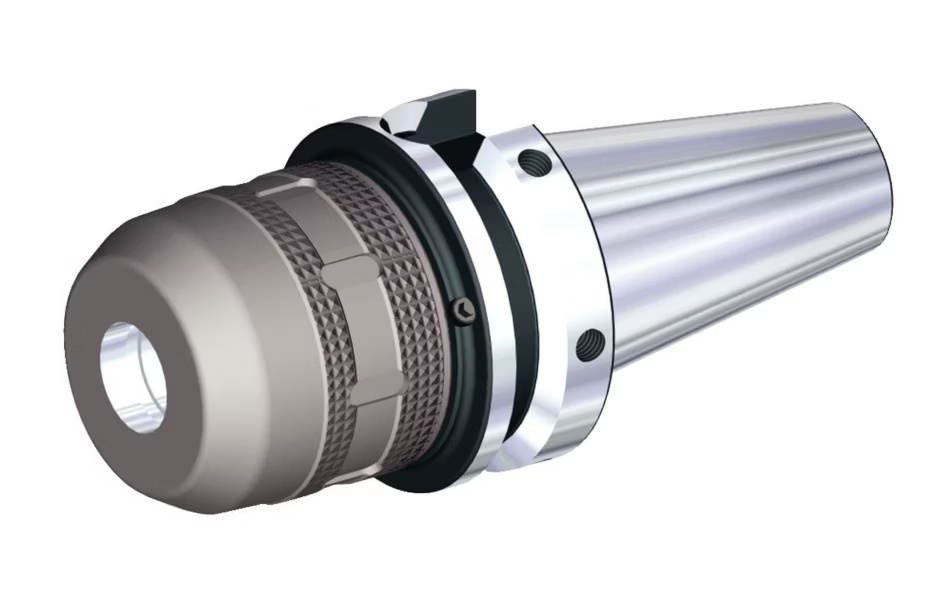

Picture of Widia/Kennametal 3578568 BT50 Milling Chuck Widia/Kennametal 1.2598 32.00mm 6.4961 Gauge Length

Widia/Kennametal 3578568 BT50 Milling Chuck Widia/Kennametal 1.2598 32.00mm 6.4961 Gauge Length

Part Number: WID3578568 ISO: BT50BHPMC32165M ANSI:BT50BHPMC32165M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1438493
Vendor: Sussex Tool and Supply
$934.22
Widia/Kennametal 32MM Milling Chuck - BT50 Form Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 50
Overall Length 10.5039 266.80MM
Coolant Thru Thru Coolant
Tool Dia 1.3580 34.49MM
Type Of Tool Milling Chuck
Insert/Tool TOOL
Part Side WELDON1.2598, Cylindrical1.2598
Output Type Weldon, Cylindrical
Output 1.2598 32.00MM
CNC Type Tool Milling Chuck
CNC Conection BT50
CNC Out Put CYLINDRICAL1.2598, WELDON1.2598
Gauge Length 6.4961
Max RPM 20000
Tool Over Hang 5.0000
Nose Dia/Nut Dia 2.9134
Balanced To 20, 000 RPM at G6.3
Flange Coolant DIN A/B
