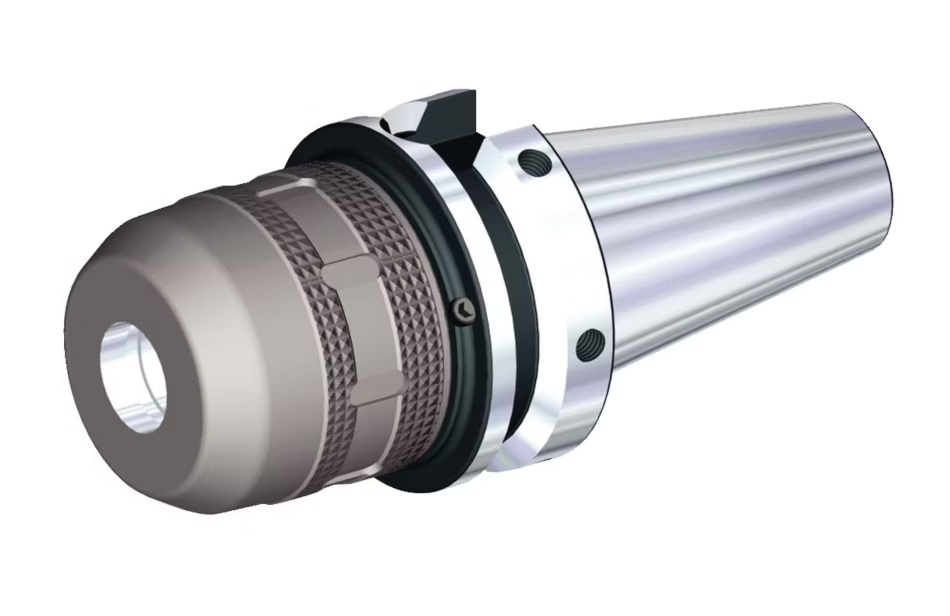

Picture of Widia/Kennametal 3578565 BT50 Milling Chuck Widia/Kennametal 0.9843 25.00mm 4.1339 Gauge Length

Widia/Kennametal 3578565 BT50 Milling Chuck Widia/Kennametal 0.9843 25.00mm 4.1339 Gauge Length

Part Number: WID3578565 ISO: BT50BHPMC25105M ANSI:BT50BHPMC25105M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1438490
Vendor: Sussex Tool and Supply
$776.61
Widia/Kennametal 25MM Milling Chuck - BT50 Form Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 50
Overall Length 8.1400 206.76MM
Coolant Thru Thru Coolant
Tool Dia 1.3580 34.49MM
Type Of Tool Milling Chuck
Insert/Tool TOOL
Part Side WELDON0.9843, Cylindrical0.9843
Output Type Weldon, Cylindrical
Output 0.9843 25.00MM
CNC Type Tool Milling Chuck
CNC Conection BT50
CNC Out Put CYLINDRICAL0.9843, WELDON0.9843
Gauge Length 4.1339
Max RPM 20000
Tool Over Hang 2.6378
Nose Dia/Nut Dia 2.4016
Balanced To 20, 000 RPM at G6.3
Flange Coolant DIN A/B
