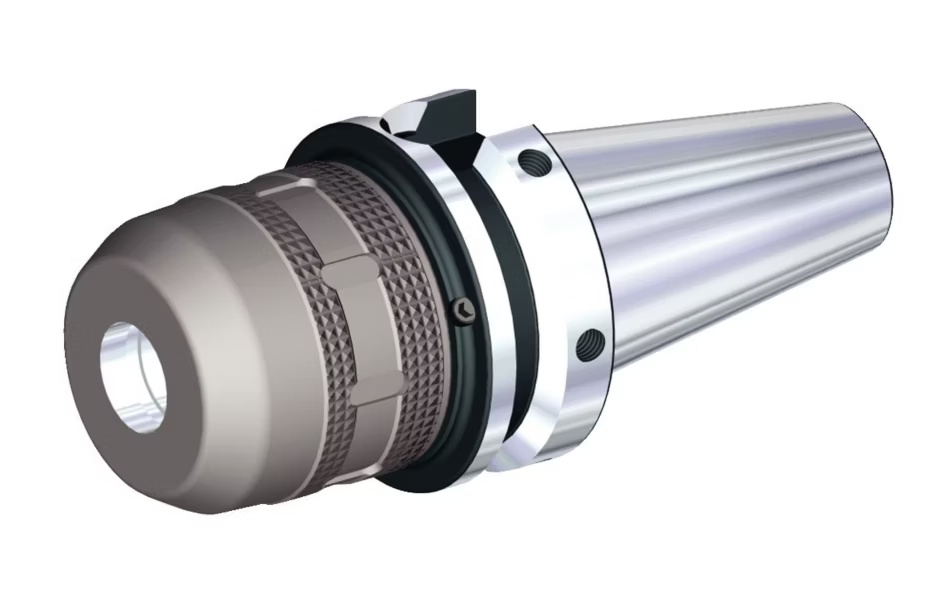

Picture of Widia/Kennametal 3578563 BT50 Milling Chuck Widia/Kennametal 0.7874 20.00mm 4.1339 Gauge Length

Widia/Kennametal 3578563 BT50 Milling Chuck Widia/Kennametal 0.7874 20.00mm 4.1339 Gauge Length

Part Number: WID3578563 ISO: BT50BHPMC20105M ANSI:BT50BHPMC20105M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1438488
Vendor: Sussex Tool and Supply
$725.52
Widia/Kennametal 20MM Milling Chuck - BT50 Form Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 50
Overall Length 8.1400 206.76MM
Coolant Thru Thru Coolant
Tool Dia 1.3580 34.49MM
Type Of Tool Milling Chuck
Insert/Tool TOOL
Part Side WELDON0.7874, Cylindrical0.7874
Output Type Weldon, Cylindrical
Output 0.7874 20.00MM
CNC Type Tool Milling Chuck
CNC Conection BT50
CNC Out Put CYLINDRICAL0.7874, WELDON0.7874
Gauge Length 4.1339
Max RPM 20000
Tool Over Hang 2.6378
Nose Dia/Nut Dia 2.0866
Balanced To 20, 000 RPM at G6.3
Flange Coolant DIN A/B
