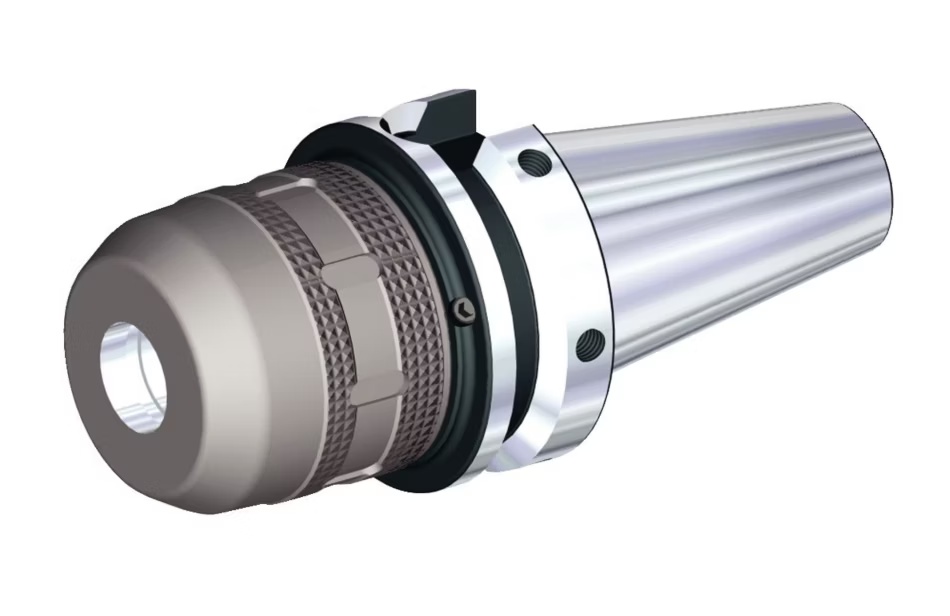

Picture of Widia/Kennametal 3578492 BT40 Milling Chuck Widia/Kennametal 1.2598 32.00mm 4.7244 Gauge Length

Widia/Kennametal 3578492 BT40 Milling Chuck Widia/Kennametal 1.2598 32.00mm 4.7244 Gauge Length

Part Number: WID3578492 ISO: BT40BHPMC32120M ANSI:BT40BHPMC32120M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1438487
Vendor: Sussex Tool and Supply
$540.75

Description

Widia/Kennametal 32MM Milling Chuck - BT40 Form Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Milling Chuck
Output Type Weldon, Cylindrical
CNC Type Tool Milling Chuck
Flange Coolant DIN A/B
Dimensions & Sizing
Overall Length 7.3000 185.42MM
Tool Dia 1.3580 34.49MM
Gauge Length 4.7244
Tool Over Hang 3.6614
Nose Dia/Nut Dia 2.7559
Performance & Capacity
Output 1.2598 32.00MM
Max RPM 20000
Balanced To 20, 000 RPM at G6.3
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection BT40
