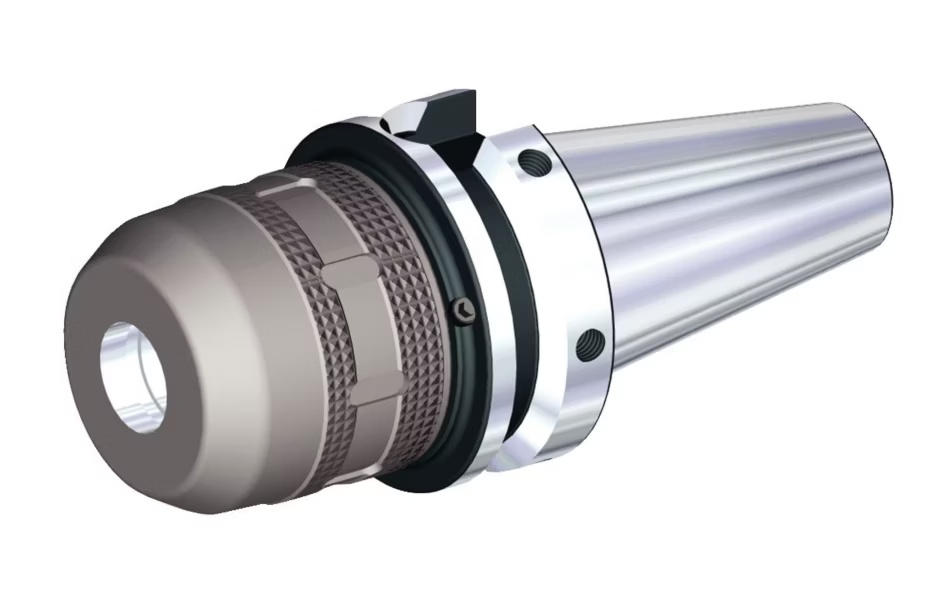

Picture of Widia/Kennametal 3578489 BT40 Milling Chuck Widia/Kennametal 0.9843 25.00mm 3.3465 Gauge Length

Widia/Kennametal 3578489 BT40 Milling Chuck Widia/Kennametal 0.9843 25.00mm 3.3465 Gauge Length

Part Number: WID3578489 ISO: BT40BHPMC25085M ANSI:BT40BHPMC25085M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1438485
Vendor: Sussex Tool and Supply
$650.45
Widia/Kennametal 25MM Milling Chuck - BT40 Form Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 40
Overall Length 5.9200 150.37MM
Coolant Thru Thru Coolant
Tool Dia 1.3570 34.46MM
Type Of Tool Milling Chuck
Insert/Tool TOOL
Part Side WELDON0.9843, Cylindrical0.9843
Output Type Weldon, Cylindrical
Output 0.9843 25.00MM
CNC Type Tool Milling Chuck
CNC Conection BT40
CNC Out Put CYLINDRICAL0.9843, WELDON0.9843
Gauge Length 3.3465
Max RPM 20000
Tool Over Hang 2.2835
Nose Dia/Nut Dia 2.4016
Balanced To 20, 000 RPM at G6.3
Flange Coolant DIN A/B
