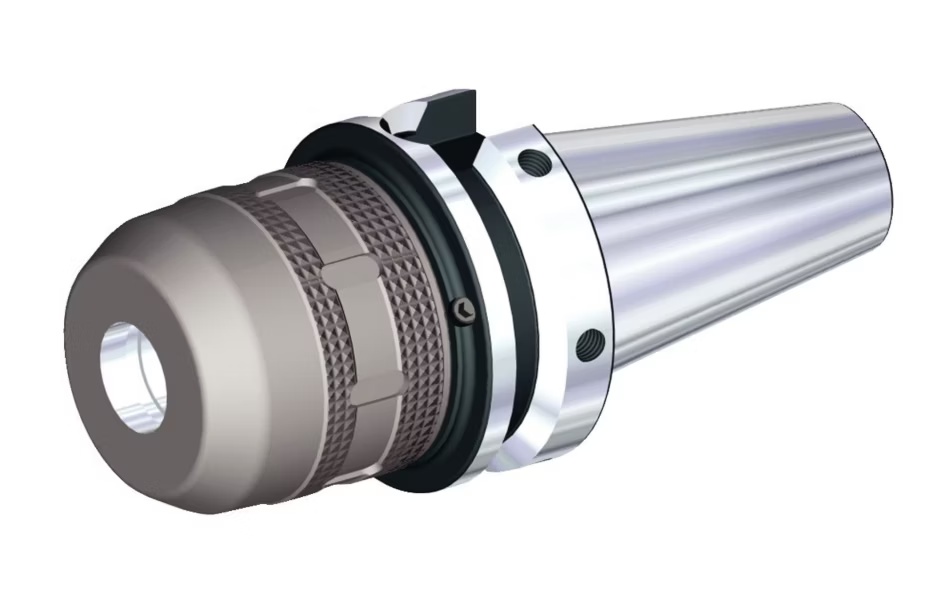

Picture of Widia/Kennametal 3578487 BT40 Milling Chuck Widia/Kennametal 0.7874 20.00mm 2.9528 Gauge Length

Widia/Kennametal 3578487 BT40 Milling Chuck Widia/Kennametal 0.7874 20.00mm 2.9528 Gauge Length

Part Number: WID3578487 ISO: BT40BHPMC20075M ANSI:BT40BHPMC20075M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1438483
Vendor: Sussex Tool and Supply
$592.84
Widia/Kennametal 20MM Milling Chuck - BT40 Form Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 40
Overall Length 5.5300 140.46MM
Coolant Thru Thru Coolant
Tool Dia 1.3570 34.46MM
Type Of Tool Milling Chuck
Insert/Tool TOOL
Part Side WELDON0.7874, Cylindrical0.7874
Output Type Weldon, Cylindrical
Output 0.7874 20.00MM
CNC Type Tool Milling Chuck
CNC Conection BT40
CNC Out Put CYLINDRICAL0.7874, WELDON0.7874
Gauge Length 2.9528
Max RPM 20000
Tool Over Hang 1.8898
Nose Dia/Nut Dia 2.0866
Balanced To 20, 000 RPM at G6.3
Flange Coolant DIN A/B
