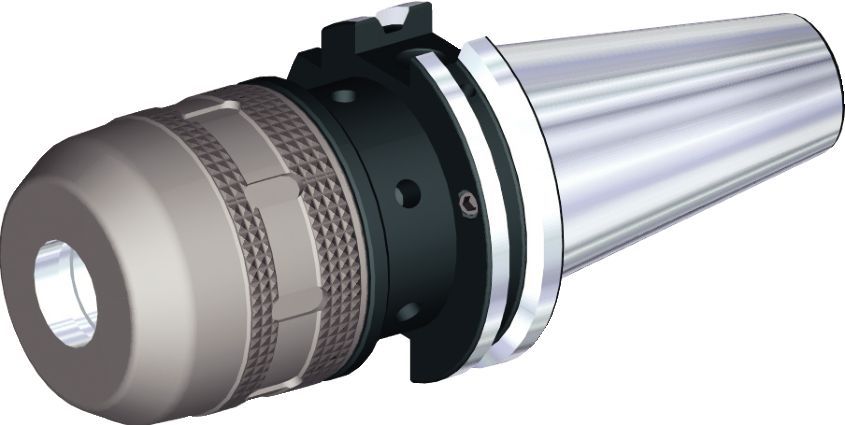

Picture of Widia/Kennametal 3523086 SK40 Milling Chuck Widia/Kennametal 0.9843 25.00mm 3.7400 Gauge Length

Widia/Kennametal 3523086 SK40 Milling Chuck Widia/Kennametal 0.9843 25.00mm 3.7400 Gauge Length

Part Number: WID3523086 ISO: DV40BHPMC25095M ANSI:DV40BHPMC25095M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1439630
Vendor: Sussex Tool and Supply
$736.75
Widia/Kennametal 25MM Milling Chuck - Dv40 Form Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type SK
Mach Side Connection Size 40
Overall Length 6.4300 163.32MM
Coolant Thru Thru Coolant
Tool Dia 1.4720 37.38MM
Type Of Tool Milling Chuck
Insert/Tool TOOL
Part Side Cylindrical0.9843
Output Type Cylindrical
Output 0.9843 25.00MM
CNC Type Tool Milling Chuck
CNC Conection SK40
CNC Out Put CYLINDRICAL0.9843
Gauge Length 3.7400
Max RPM 20000
Tool Over Hang 2.9880
Nose Dia/Nut Dia 2.4016
Balanced To 20, 000 RPM at G6.3
Flange Coolant DIN A/B
