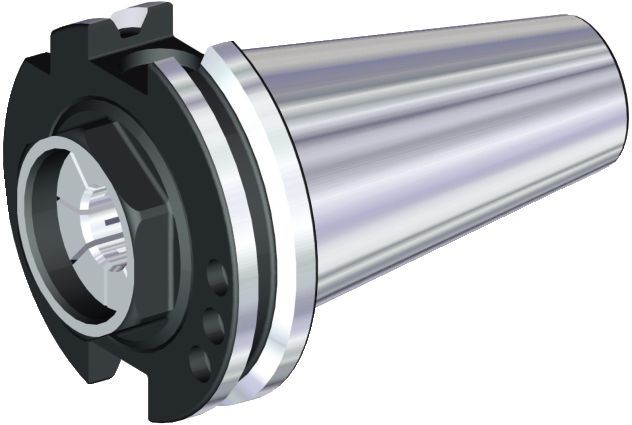

Picture of Widia/Kennametal 3479820 SK50 Collet Chuck ER32 1.0630 Gauge Length

Widia/Kennametal 3479820 SK50 Collet Chuck ER32 1.0630 Gauge Length

Part Number: WID3479820 ISO: DV50SER32027M ANSI:DV50SER32027M
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1439508
Vendor: Sussex Tool and Supply
$187.43

Description

Widia/Kennametal ER32 Short Collet Chuck Dv50-V Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA NO
Coolant Thru Thru Coolant
Type Of Tool Collet Chuck
Output Type ER
CNC Type Tool Collet Chuck
Flange Coolant DIN A/B
Dimensions & Sizing
Overall Length 5.0630 128.60MM
Tool Dia 1.4600 37.08MM
Gauge Length 1.0630
Nose Dia/Nut Dia 1.4100
Performance & Capacity
Output 32
Max RPM 20000
Balanced To 20, 000 RPM at G6.3
Materials & Finish
Tool Material Steel
Compatibility & Fit
CNC Connection SK50
