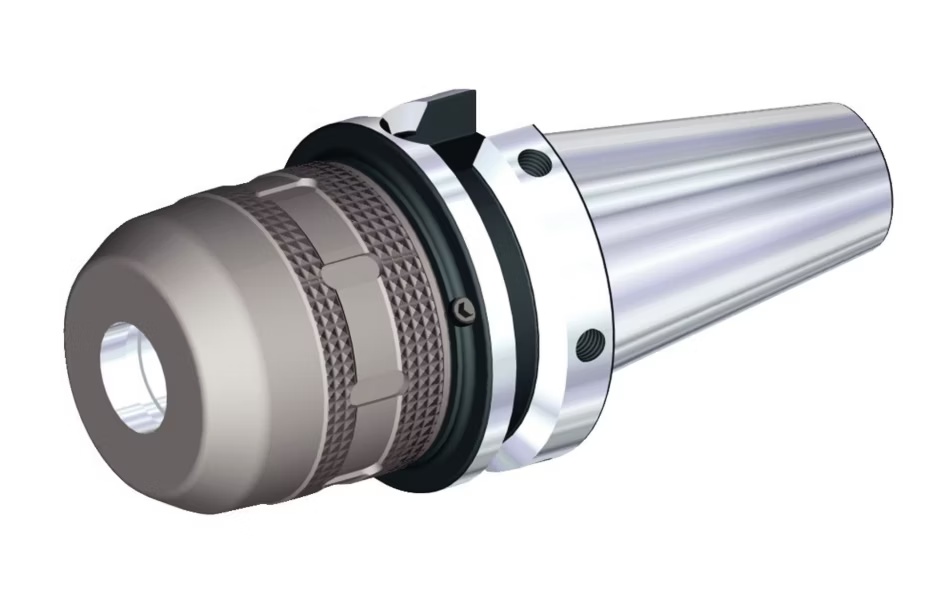

Picture of Widia/Kennametal 3100419 BT50 Milling Chuck Widia/Kennametal 1.0000 25.40mm 4.1339 Gauge Length

Widia/Kennametal 3100419 BT50 Milling Chuck Widia/Kennametal 1.0000 25.40mm 4.1339 Gauge Length

Part Number: WID3100419 ISO: BT50BHPMC100413 ANSI:BT50BHPMC100413

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1438480
Vendor: Sussex Tool and Supply
$776.61
Widia/Kennametal 1 Milling Chuck - BT50 Formb - Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 50
Overall Length 8.1400 206.76MM
Coolant Thru Thru Coolant
Tool Dia 1.3570 34.46MM
Type Of Tool Milling Chuck
Insert/Tool TOOL
Part Side Cylindrical1.0000, WELDON1.0000
Output Type Weldon, Cylindrical
Output 1.0000 25.40MM
CNC Type Tool Milling Chuck
CNC Conection BT50
CNC Out Put WELDON1.0000, CYLINDRICAL1.0000
Gauge Length 4.1339
Tool Over Hang 2.6378
Nose Dia/Nut Dia 2.4016
Flange Coolant DIN A/B
