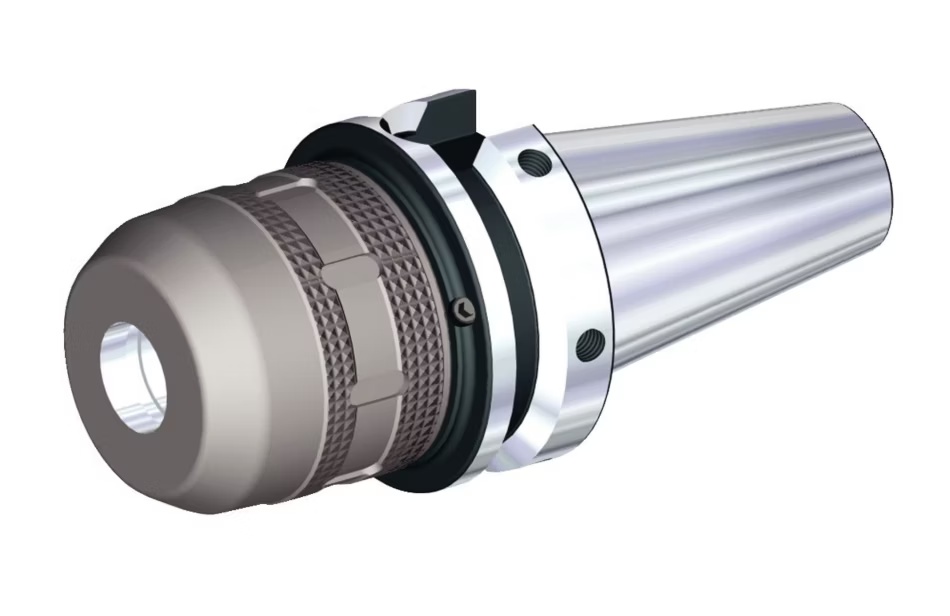

Picture of Widia/Kennametal 3100418 BT50 Milling Chuck Widia/Kennametal 0.7500 19.05 - 3/4 4.1339 Gauge Length

Widia/Kennametal 3100418 BT50 Milling Chuck Widia/Kennametal 0.7500 19.05 - 3/4 4.1339 Gauge Length

Part Number: WID3100418 ISO: BT50BHPMC075413 ANSI:BT50BHPMC075413

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1438479
Vendor: Sussex Tool and Supply
$725.52
Widia/Kennametal 3/4 Milling Chuck - BT50 Formb Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 50
Overall Length 8.1400 206.76MM
Coolant Thru Thru Coolant
Tool Dia 1.3570 34.46MM
Type Of Tool Milling Chuck
Insert/Tool TOOL
Part Side Cylindrical0.7500, WELDON0.7500
Output Type Weldon, Cylindrical
Output 0.7500 19.05 - 3/4
CNC Type Tool Milling Chuck
CNC Conection BT50
CNC Out Put WELDON0.7500, CYLINDRICAL0.7500
Gauge Length 4.1339
Max RPM 20000
Tool Over Hang 2.6378
Nose Dia/Nut Dia 2.0866
Balanced To 20, 000 RPM at G6.3
Flange Coolant DIN A/B
