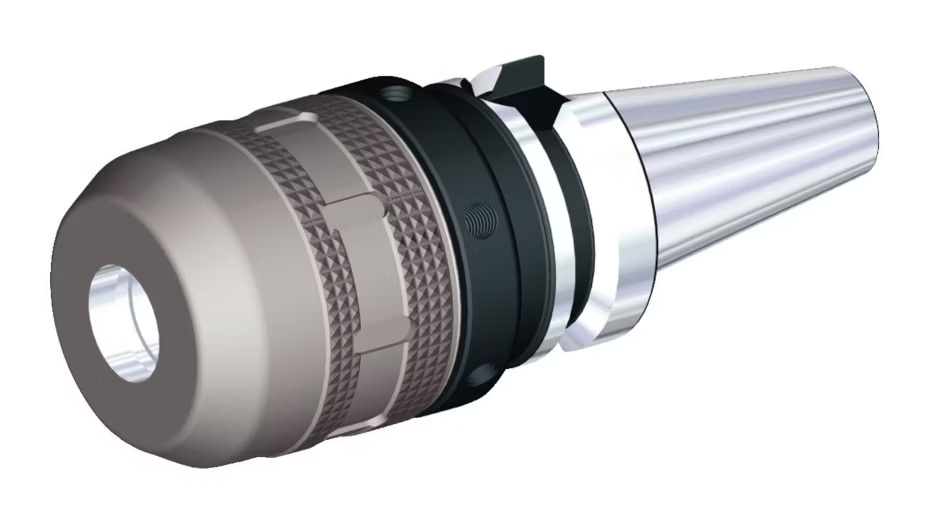

Picture of Widia/Kennametal 3100411 BT30 Milling Chuck Widia/Kennametal 0.7500 19.05 - 3/4 3.3465 Gauge Length

Widia/Kennametal 3100411 BT30 Milling Chuck Widia/Kennametal 0.7500 19.05 - 3/4 3.3465 Gauge Length

Part Number: WID3100411 ISO: BT30HPMC075335 ANSI:BT30HPMC075335

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1438474
Vendor: Sussex Tool and Supply
$522.99
Widia/Kennametal 3/4 Milling Chuck - BT30 Bala Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type BT
Mach Side Connection Size 30
Overall Length 5.2520 133.40MM
Coolant Thru Thru Coolant
Tool Dia 1.3560 34.44MM
Type Of Tool Milling Chuck
Insert/Tool TOOL
Part Side Cylindrical0.7500, WELDON0.7500
Output Type Weldon, Cylindrical
Output 0.7500 19.05 - 3/4
CNC Type Tool Milling Chuck
CNC Conection BT30
CNC Out Put WELDON0.7500, CYLINDRICAL0.7500
Gauge Length 3.3465
Max RPM 20000
Tool Over Hang 3.3465
Nose Dia/Nut Dia 2.0866
Balanced To 20, 000 RPM at G6.3
