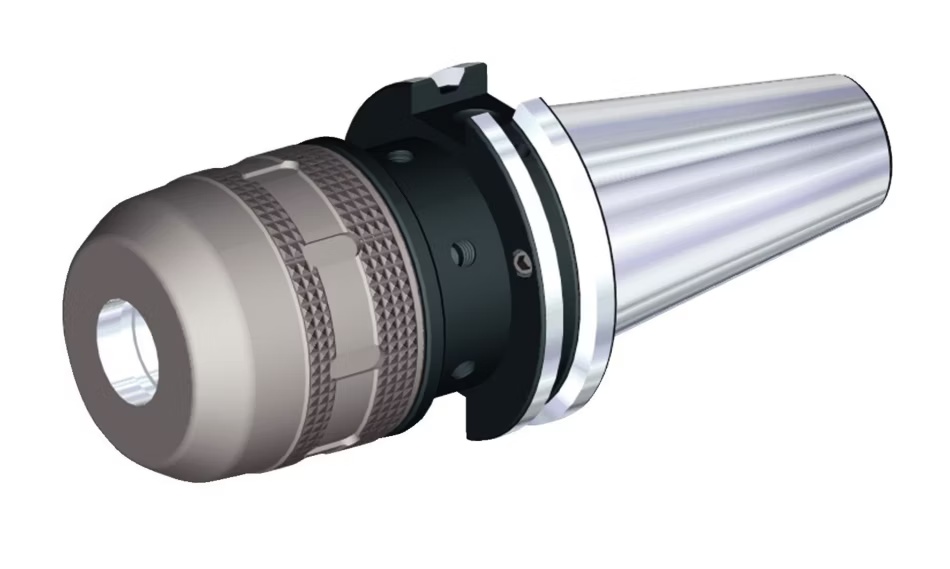

Picture of Widia/Kennametal 3100409 CAT50 Milling Chuck Widia/Kennametal 1.2500 31.75mm - 1-1/4 5.3150 Gauge Length

Widia/Kennametal 3100409 CAT50 Milling Chuck Widia/Kennametal 1.2500 31.75mm - 1-1/4 5.3150 Gauge Length

Part Number: WID3100409 ISO: CV50HPMC125531 ANSI:CV50HPMC125531

Need Assistance or Service? Please call 262-251-4020

Manufacturer: WIDIA/KENNAMETAL
SKU: 1439118
Vendor: Sussex Tool and Supply
$790.58
Widia/Kennametal 1 1/4 Milling Chuck - Cv50 For Steel
Products specifications
Attribute name Attribute value
Shipping State PENNSYLVANIA
Made In USA NO
Tool Material Steel
Machine Side Connection Type CAT
Mach Side Connection Size 50
Overall Length 9.3120 236.52MM
Coolant Thru Thru Coolant
Tool Dia 1.4210 36.09MM
Type Of Tool Hydraulic Chuck
Insert/Tool TOOL
Part Side Cylindrical1.2500
Output Type Cylindrical
Output 1.2500 31.75MM - 1-1/4
CNC Type Tool Milling Chuck
CNC Conection CAT50
CNC Out Put CYLINDRICAL1.2500
Gauge Length 5.3150
Max RPM 20000
Tool Over Hang 4.5654
Nose Dia/Nut Dia 2.9134
Balanced To 20, 000 RPM at G6.3
Flange Coolant DIN A/B
